Dholavira (Gujarati: ????????) is an archaeological site in Bhachau Taluka of Kutch District, in the state of Gujarat in western India, which has taken its name from a modern village 1 km (0.62 mi) south of it. Also known locally as Kotada timba the site contains ruins of an ancient Indus Valley Civilization/Harappan city. It is one of the five largest Harappan sites[1] and most prominent archaeological sites in India belonging to the Indus Valley Civilization. It is also considered as grandest of cities[2] of its time. It is located on the Khadir bet island in the Kutch Desert Wildlife Sanctuary in Great Rann of Kutch and the area of the full site is more than 100 ha (250 acres).[3] The site was occupied from c.2650 BCE, declining slowly after about 2100 BCE. It was briefly abandoned and reoccupied until c.1450 BCE.[4]
The site was discovered in 1967-8 by J. P. Joshi and is the fifth largest of eight major Harappan sites. It has been under excavation since 1990 by the Archaeological Survey of India, which opines that "Dholavira has indeed added new dimensions to personality of Indus Valley Civilisation."[5] The other major Harappan sites discovered so far are: Harappa, Mohenjo-daro, Ganeriwala, Rakhigarhi, Kalibangan, Rupnagar and Lothal.
Chronology of Dholavira[edit]
R.S. Bisht, the director of the Dholavira excavations, has defined following seven stages of occupation, at the site:[6]
Stages |
Dates |
|
Stage I |
2650–2550 BCE |
Early Harappan – Mature Harappan Transition A |
Stage II |
2550–2500 BCE |
Early Harappan – Mature Harappan Transition B |
Stage III |
2500–2200 BCE |
Mature Harappan A |
Stage IV |
2200–2000 BCE |
Mature Harappan B |
Stage V |
2000–1900 BCE |
Mature Harappan C |
|
1900–1850 BCE |
Period of desertion |
Stage VI |
1850–1750 BCE |
Posturban Harappan A |
|
1750–1650 BCE |
Period of desertion |
Stage VII |
1650–1450 BCE |
Posturban Harappan B |
Excavations[edit]
Excavation was initiated in 1989 by the Archaeological Survey of India under the direction of R. S. Bisht and there were 13 field excavations between 1990 and 2005.[1] The excavation brought to light the urban planning and architecture, and unearthed large numbers of antiquities such as seals, beads, animal bones, gold, silver, terracotta ornaments, pottery and bronze vessels. Archaeologists believe[vague] that Dholavira was an important centre of trade between settlements in south Gujarat, Sindh and Punjab and Western Asia.[7][8]
Architecture and material culture[edit]

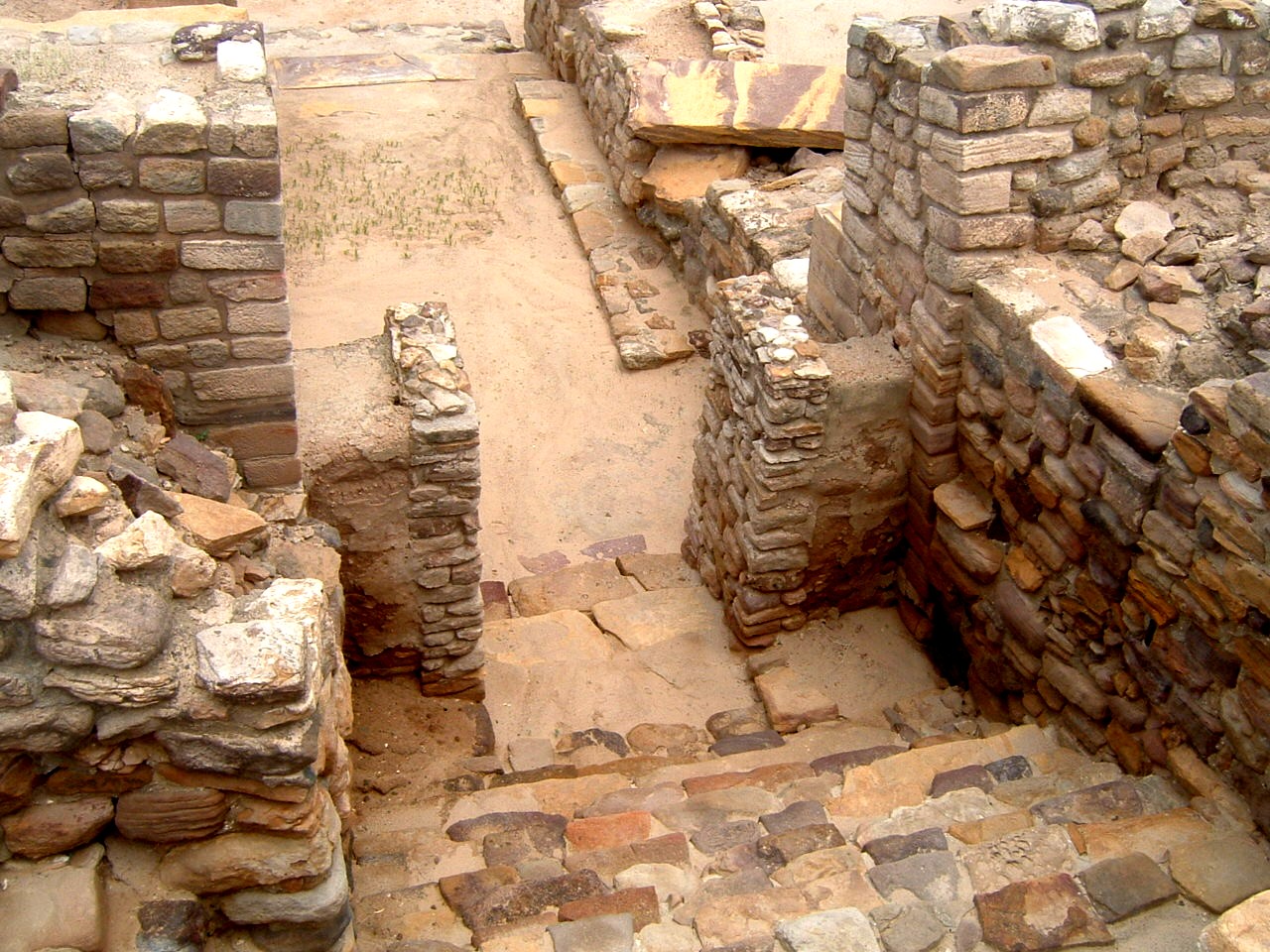

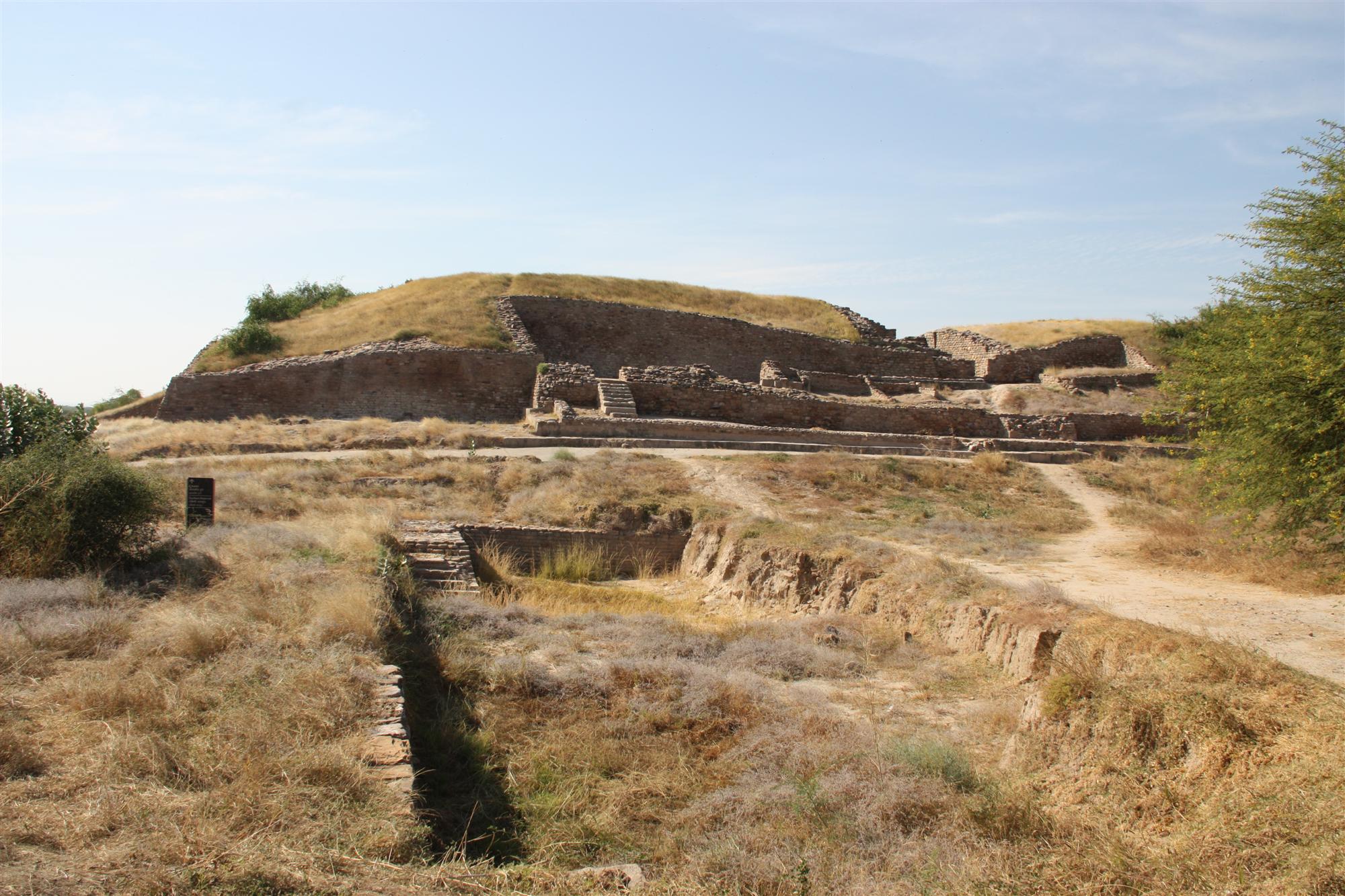

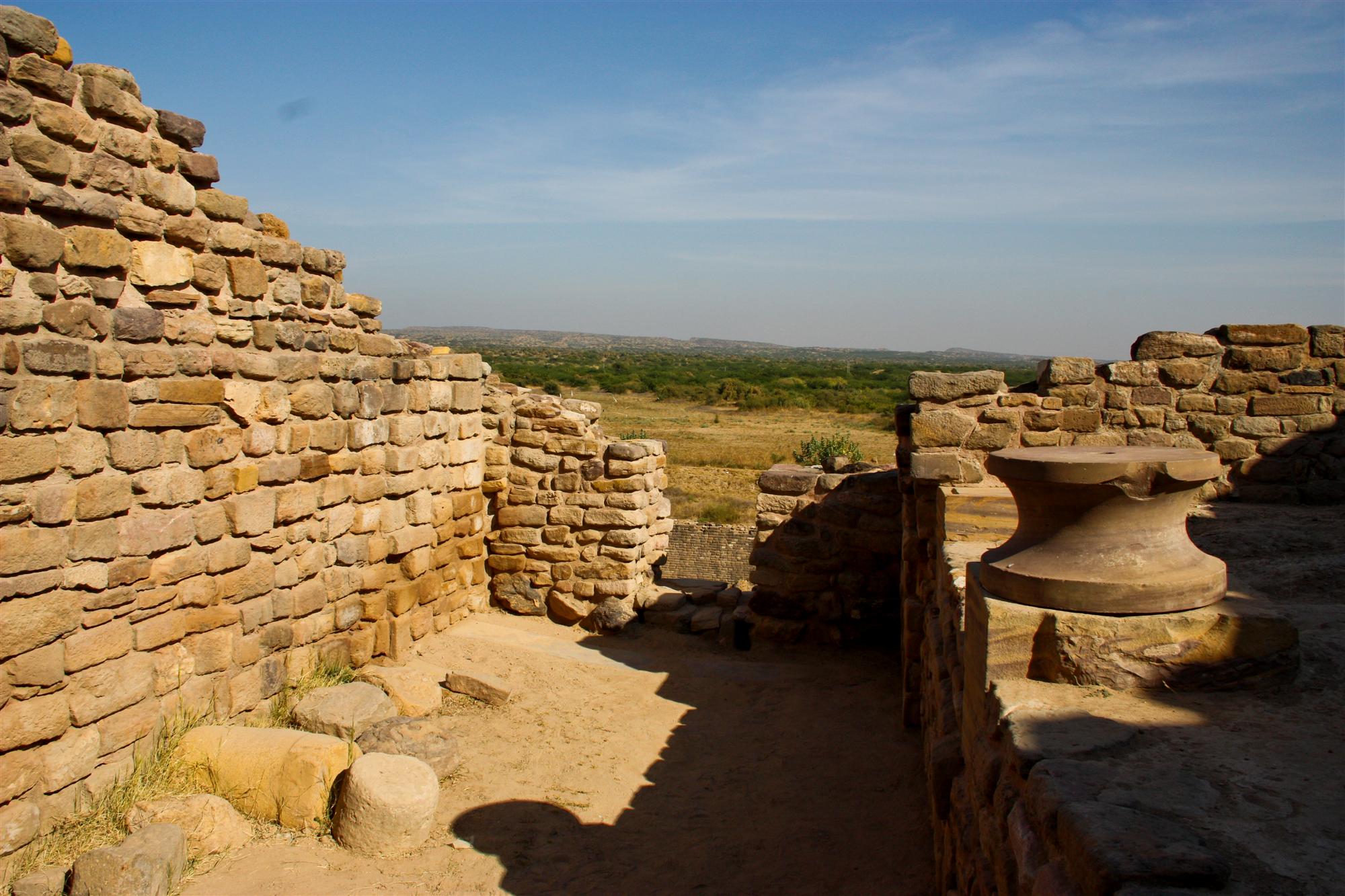

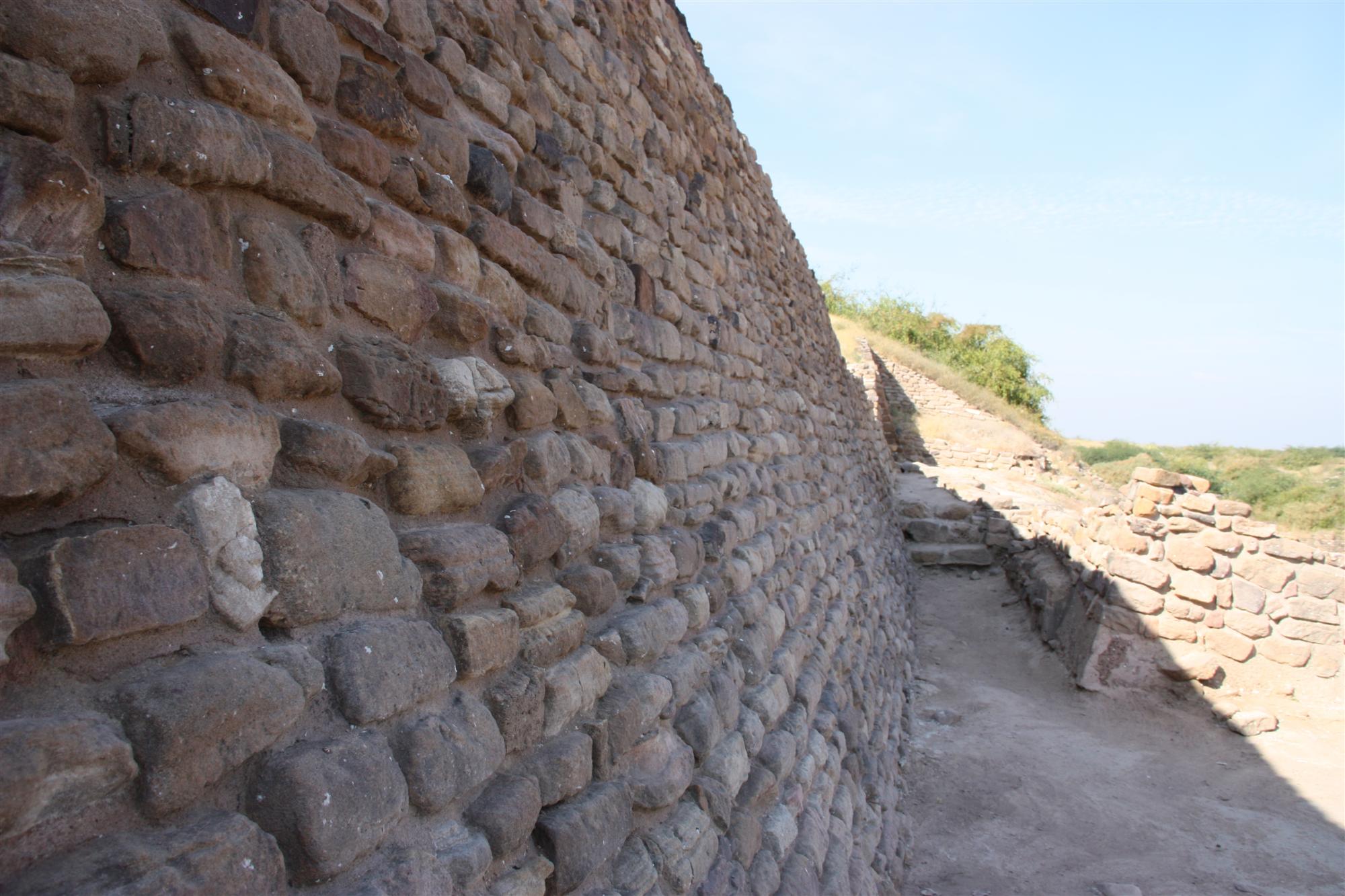

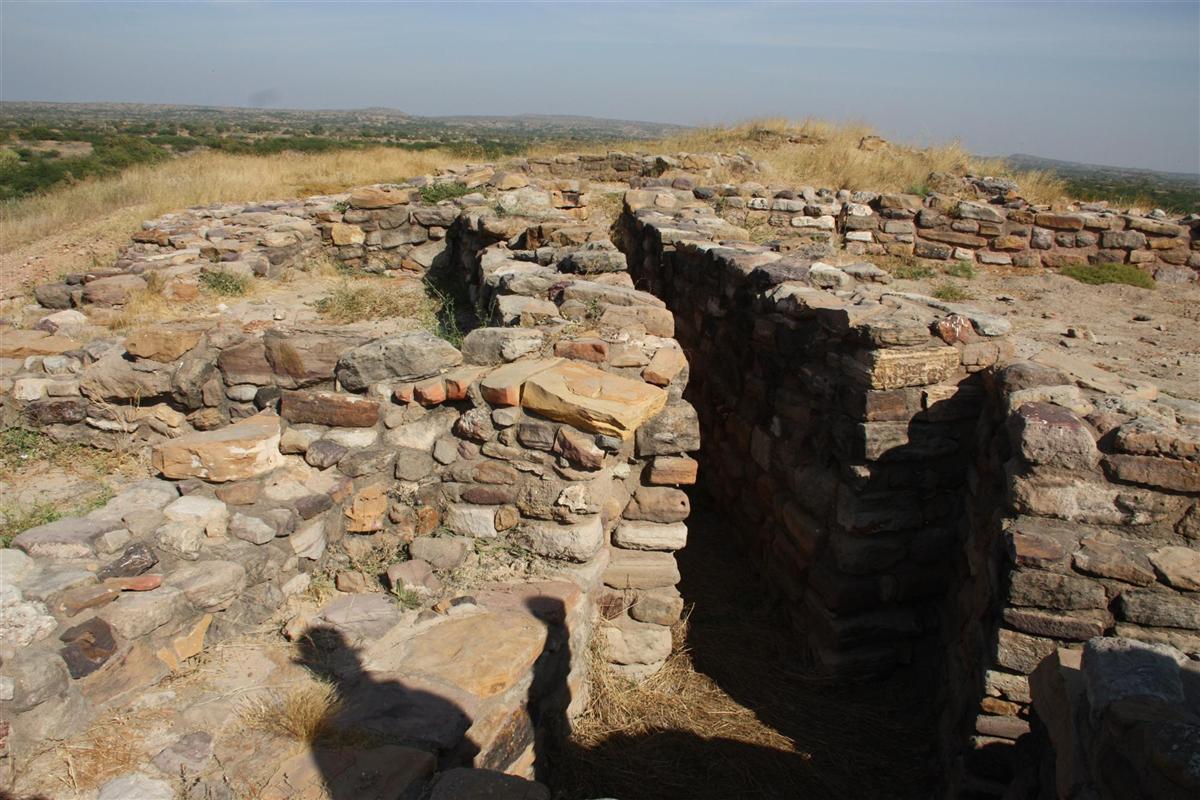

Estimated to be older than the port-city of Lothal,[citation needed] the city of Dholavira has a rectangular shape and organization, and is spread over 100 ha (250 acres). The area measures 771.1 m (2,530 ft) in length, and 616.85 m (2,023.8 ft) in width.[5] Like Harappa and Mohenjo-daro, the city is composed to a pre-existing geometrical plan, of three divisions – the citadel, the middle town and the lower town.[9] The acropolis and the middle town had been further furnished with their own defence-work, gateways, built-up areas, street system, wells and large open spaces. The acropolis is the most carefully guarded[5] as well as complex in the city of which it appropriates the major portion of the southwestern zone. The towering "castle" stands in fair insulation and defended by double ramparts.[10] Next to this stands a place called 'bailey' where important officials lived.[11] The city within the general fortification accounts for 48 ha (120 acres). There are extensive structure-bearing areas though outside yet integral to the fortified settlement. Beyond the walls, yet another settlement has been found.[5] The most striking feature of the city is that all of its buildings, at least in their present state of preservation, are built out of stone, whereas most other Harappan sites, including Harappa itself and Mohenjo-daro, are almost exclusively built out of brick.[12] Dholavira is flanked by two storm water channels; the Mansar in the north, and the Manhar in the south.
Reservoirs[edit]

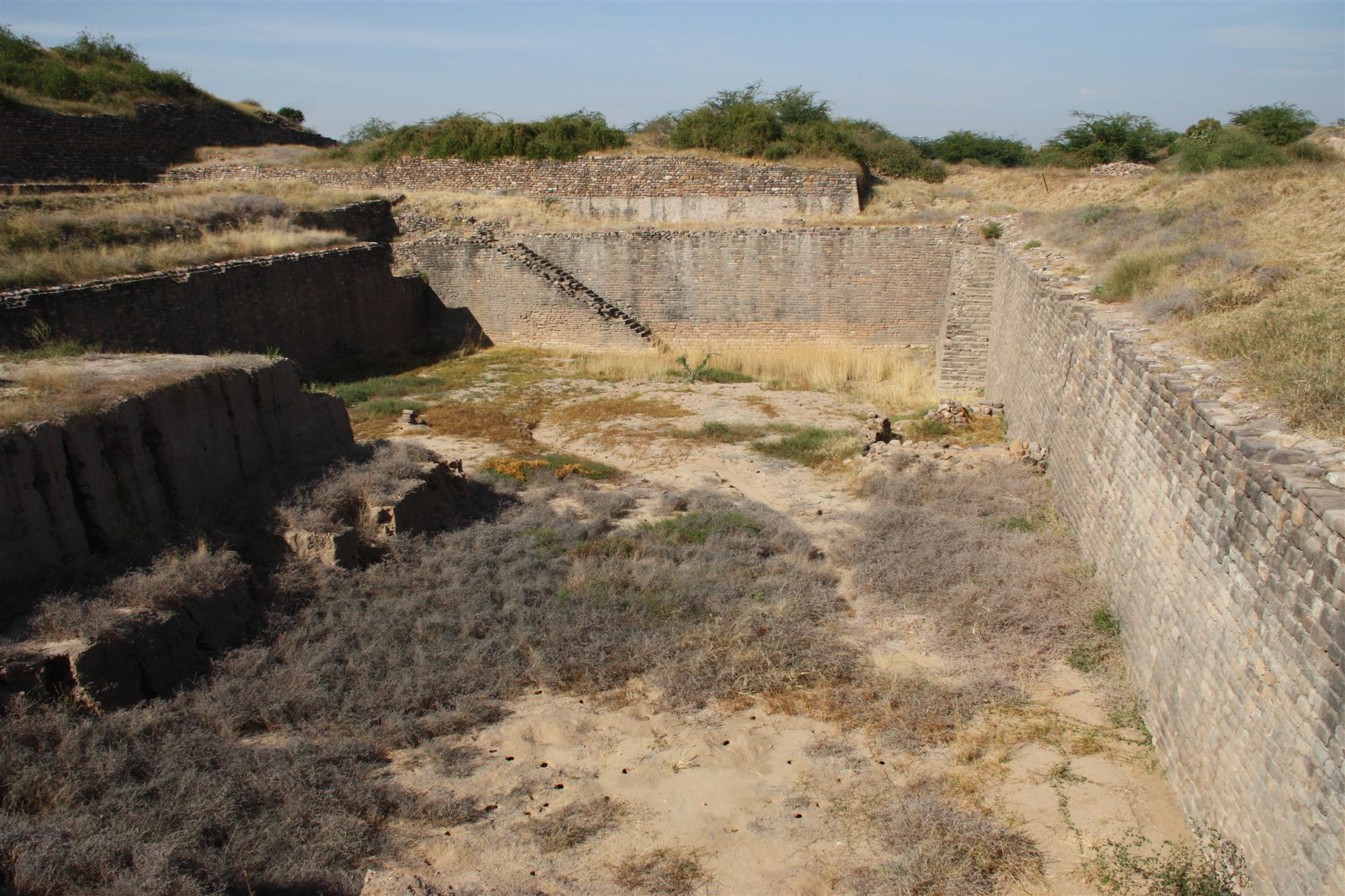

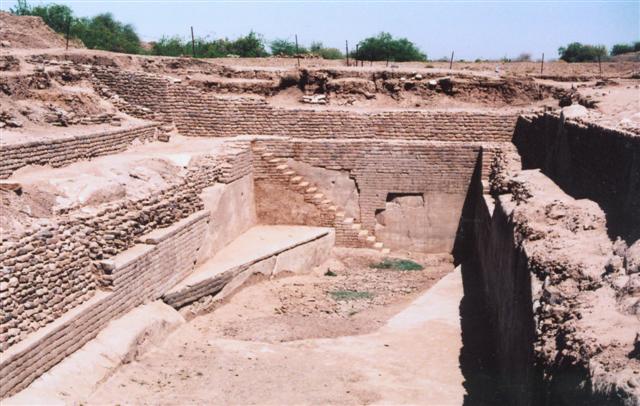

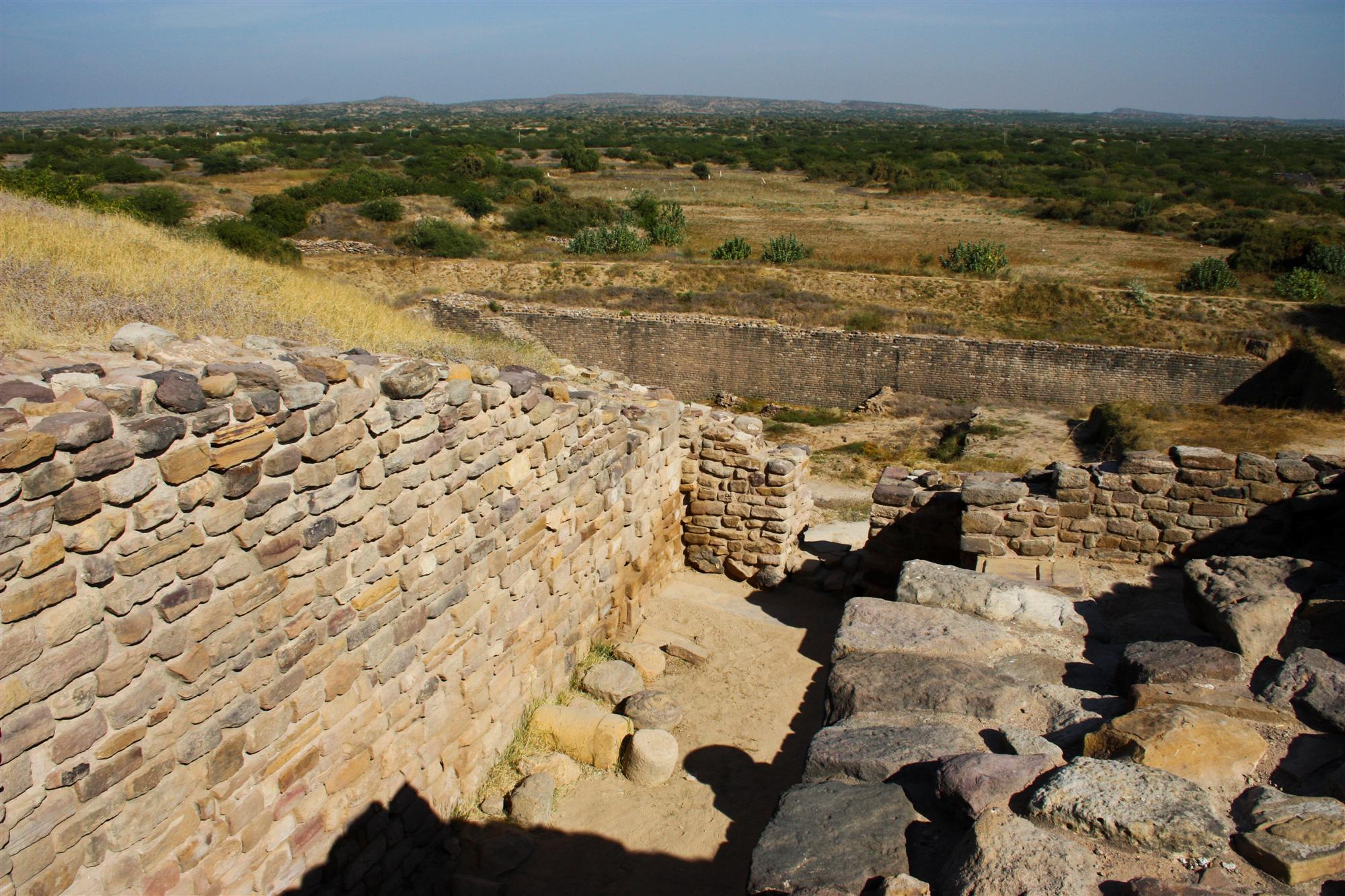

One of the water reservoirs, with steps, at Dholavira
"The kind of efficient system of Harappans of Dholavira, developed for conservation, harvesting and storage of water speaks eloquently about their advanced hydraulic engineering, given the state of technology in the third millennium BCE" says R.S.Bist, Joint Director General (Rtd.), Archeological Survey of India.[1] One of the unique features[13] of Dholavira is the sophisticated water conservation system[14] of channels and reservoirs, the earliest found anywhere in the world[citation needed] and completely built out of stone, of which three are exposed. Dholavira had massive reservoirs.[15] They were used for storing the fresh water brought by rains[14] or to store the water diverted from two nearby rivulets.[16] This clearly came in wake of the desert climate and conditions of Kutch, where several years may pass without rainfall. A seasonal stream which runs in north-south direction of the site was dammed at several points to collect water.[4]
The inhabitants of Dholavira created sixteen or more reservoirs[4] of varying size during Stage III.[5] Some of these took advantage of the slope of the ground within the large settlement,[5] a drop of 13 m from northeast to northwest. Other reservoirs were excavated, some into living rock. Recent work has revealed two large reservoirs, one to the east of the castle and one to its south, near the Annexe.[17]

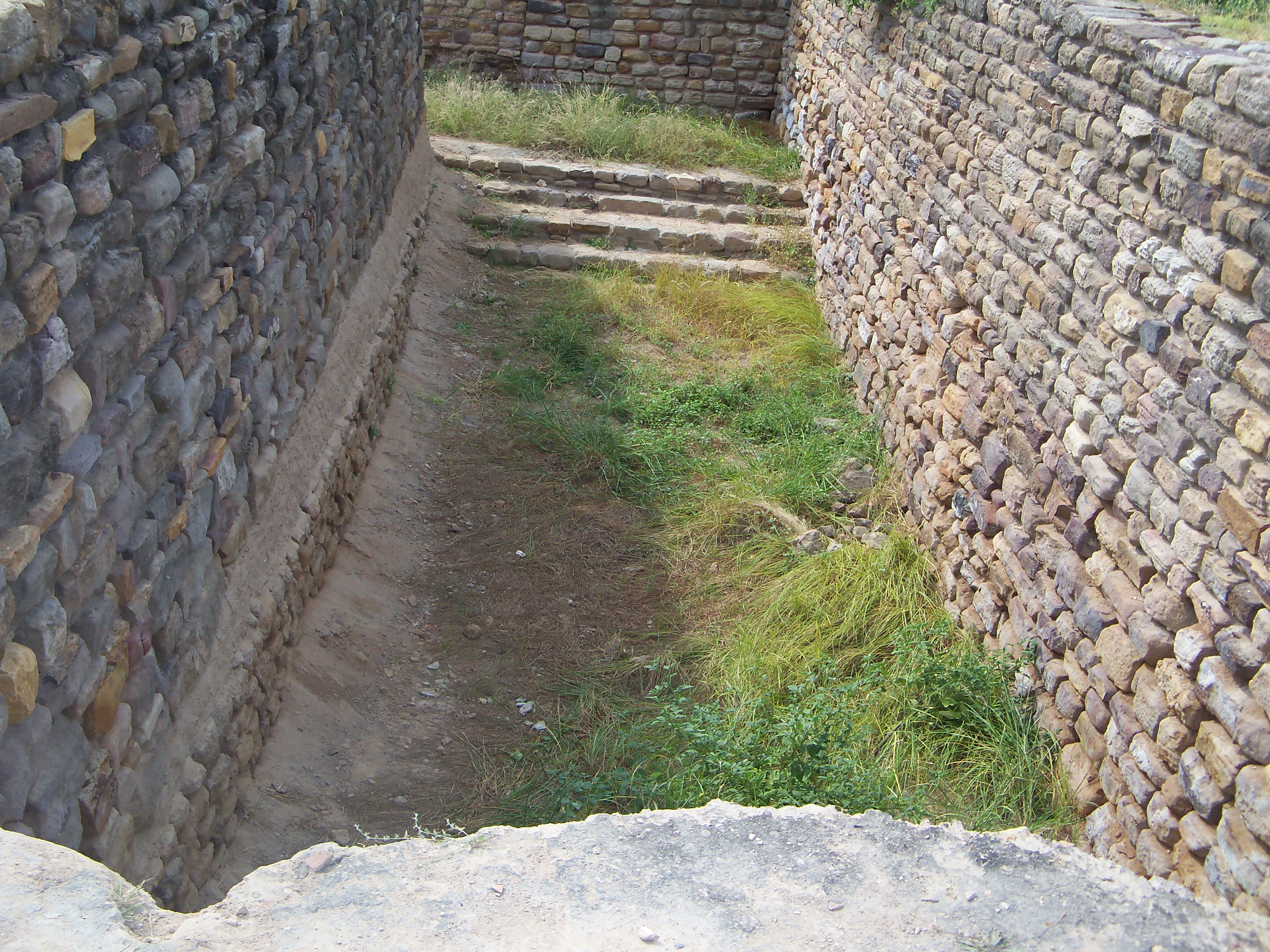

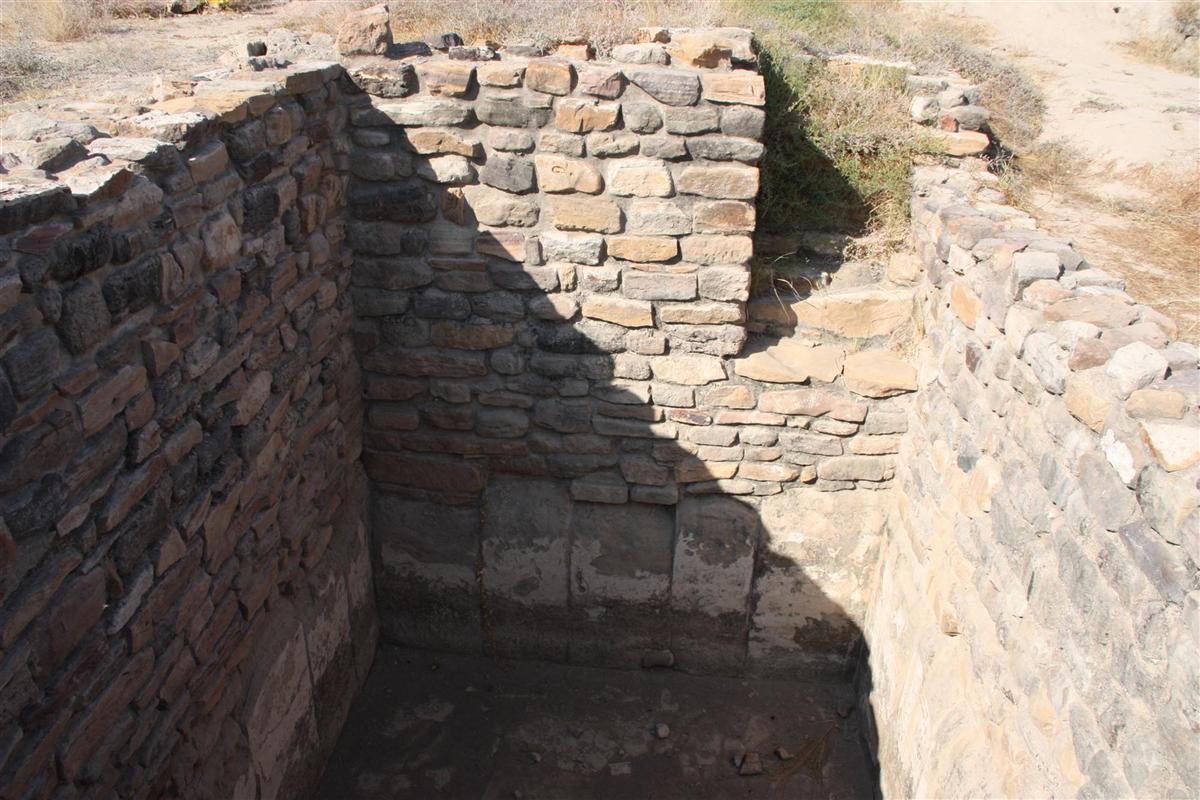

Reservoirs are cut through stones vertically. They are about 7 meters deep and 79 meters long. Reservoirs skirted the city while citadel and bath are centrally located on raised ground.[14] A large well with a stone-cut trough to connect the drain meant for conducting water to a storage tank also found.[14] Bathing tank had steps descending inwards.[14]
Seal making[edit]
Some of the seals found at Dholavira, belonging to Stage III, contained animal only figures, without any type of script and it is suggested that these type of seals represent early conventions of Indus seal making.[4]
Other structures and objects[edit]

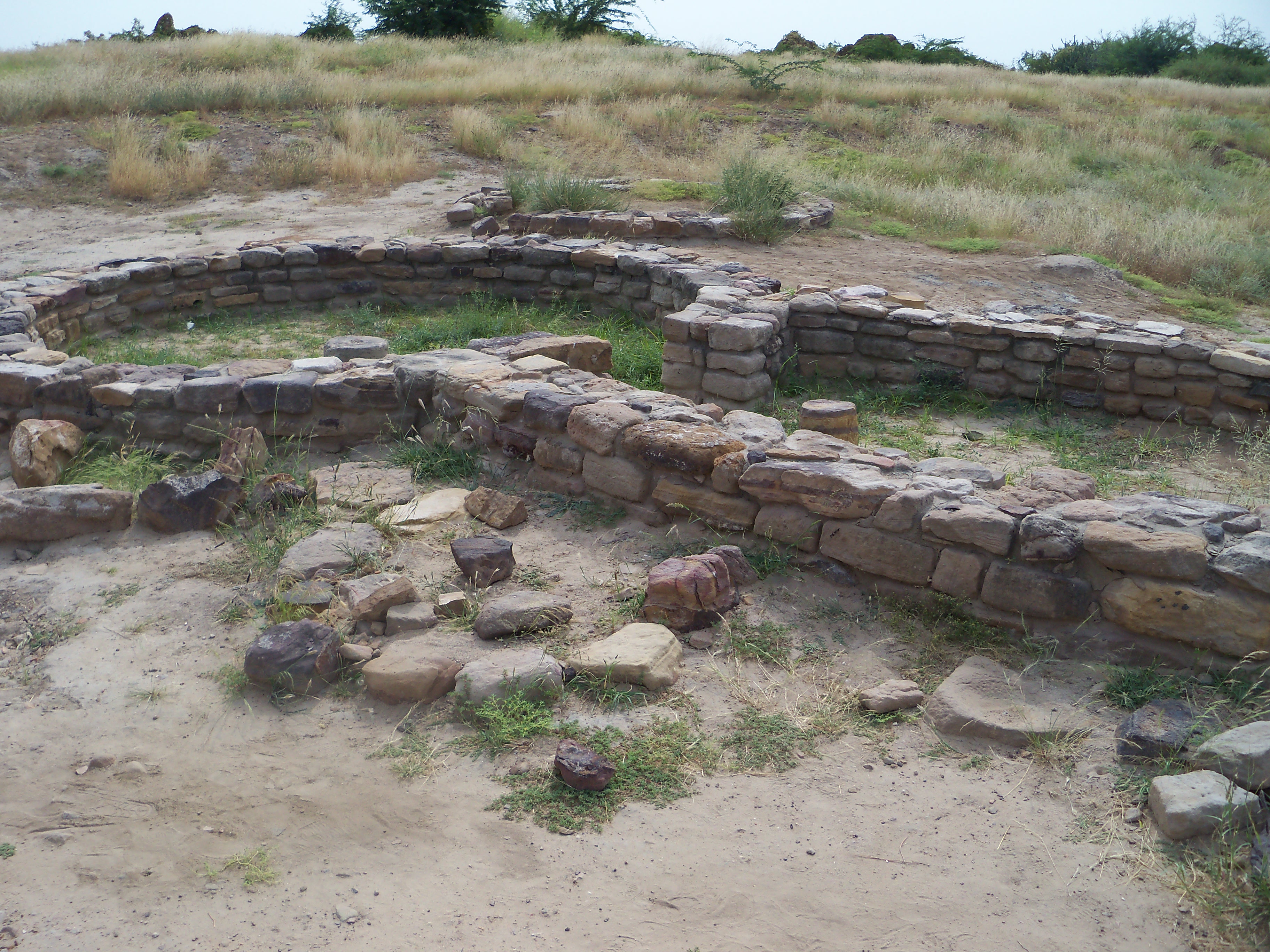

A huge circular structure, believed to be a grave or memorial has been found[14] However no skeleton or human remains found under structure. The circular structure is built with ten radial walls of mud bricks in a shape of spoked wheel.[14] A soft sandstone sculpture of a male with phallus erectus but head and feet below ankle truncated was found in the passage way of the eastern gate.[14] Also many funerary structures were found, however except one they were devoid of skeletons[14] Also many pottery pieces, terracotta seals, bangles, rings, beads and intaglio engraving found.[14]
Hemispherical constructions[edit]
Seven Hemispherical constructions were found at Dholavira, of which two were excavated in detail, which were constructed over large rock cut chambers.[5] Having a circular plan, these were big hemispherical elevated mud brick constructions. One of the excavated structures was designed in the form of a spoked wheel. The other was also designed in same fashion, but as a wheel without spokes. Although they contained burial goods of pottery, no skeletons were found except for one grave, where a skeleton and a copper mirror were found.[5] A necklace of steatite beads strung to a copper wire with hooks at both ends, a gold bangle, gold and other beads were also found in one of the hemispherical structures.[5]
These hemispherical structures bear similarity to early Buddhist stupas.[5] The Archeological Survey of India, which conducted the excavation, opines that "the kind of design that is of spoked wheel and unspoked wheel also remind one of the Sararata-chakra-citi and sapradhi-rata-chakra-citi mentioned in the Satapatha Brahmana and Sulba-sutras," which belong to a much later period.[5]
Findings[edit]
Painted Indus black-on-red-ware pottery, square stamp seals, seals without Indus script, a huge sign board measuring about 3 m in length, containing ten letters of Indus script etc.[4] One poorly preserved seated male figure made of stone has also been found, comparable to high quality two stone sculptures found at Harappa.[18] Large black-slipped jars with poiinted base were also found at this site.[4] A giant bronze hammer, a big chisel, a bronze hand-held mirror, a gold wire, gold ear stud, gold globules with holes, copper celts and bangles, shell bangles, phallus-like symbols of stone, square seals with indus inscription and signs, a circular seal, carleian humped animals, pottery with painted motifs, goblets, dish-on-stand, perforated jars, Terracotta tumblers in good shape, architectural members made of ballast stones, grinding stones, mortars, etc., were also found at this site.[1] Stone weights of different measures were also found.[19]
Coastal route[edit]
It is suggested that a coastal route existed linking Lothal and Dholavira to Sutkagan Dor on the Makran coast.[20]
Language and script[edit]
The Harrapans spoke an unknown language and their script has not yet been deciphered. It is believed to have had about 400 basic signs, with many variations.[21] The signs may have stood both for words and for syllables.[21] The direction of the writing was generally from right to left.[22] Most of the inscriptions are found on seals (mostly made out of stone) and sealings (pieces of clay on which the seal was pressed down to leave its impression). Some inscriptions are also found on copper tablets, bronze implements, and small objects made of terracotta, stone and faience. The seals may have been used in trade and also for official administrative work.[23] A lot of inscribed material was found at Mohenjo-daro and other Indus Valley Civilisation sites.
Sign board[edit]
Ten Indus glyphs discovered near the northern gate of Dholavira
One of the most significant discoveries at Dholavira was made in one of the side rooms of the northern gateway of the city, and is often called the Dholavira Signboard. The Harappans had arranged and set pieces of the mineral gypsum to form ten large symbols or letters on a big wooden board[24] At some point, the board fell flat on its face. The wood decayed, but the arrangement of the letters survived. The letters of the signboard are comparable to large bricks that were used in nearby walls. Each sign is about 37 cm (15 in) high and the board on which letters were inscribed was about 3 m (9.8 ft) long.[25] The inscription is one of the longest in the Indus script, with one symbol appearing four times, and this and its large size and public nature make it a key piece of evidence cited by scholars arguing that the Indus script represents full literacy. A four sign inscription with big size letters on a sand stone is also found at this site, considered first of such inscription on sand stone at any of Harappan sites.[1]
